System

  • Superb image quality with high Detective Quantum Efficiency (DQE)

    The proprietary angiography flat-panel detector offers one of the industry’s highest ratings for Detective Quantum Efficiency (DQE), a parameter internationally acknowledged as an index of detector performance in contrast-and dose-limited imaging performed in clinical studies. High DQE enables better-quality images at the same dose, or the same quality image at a lower dose.

  • Dedicated imaging for cardiac procedures

    The Optima IGS 320 includes a 20.5 cm (8 in) square detector dedicated to cardiac imaging that offers 34% greater coverage than 17 cm (6.7 in) square detectors. It provides excellent coverage for performing coronary interventions from simple left coronary stenting to complex bifurcation cases or long CTO procedures and electrophysiology studies.

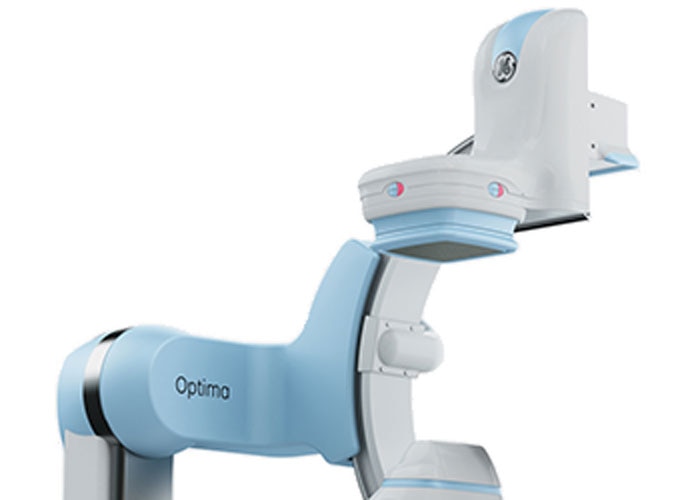

  • Offset C-arm

    With its unique offset C-Arm, the Optima IGS 320 enables improved access to patient head in complex interventions and helps cover head to groin without moving the gantry

  • Clear access to patients during interventions

    Thanks to the exclusive design of the C-arm, you get unrestricted access to the patient’s head for anesthesia and nursing.
    In addition, the C-arm design allows you to perform 3D rotational acquisitions of the spine and torso as well as patients’ head while intubated.

  • Simple, centralized, automated controls

    Control your system and images with integrated, intuitive tableside controls. With simple menus, the Central touchscreen lets you control most system functions, configure the system, modify imaging parameters, control images displayed on your monitors, and manipulate advanced applications –all at the tableside. The comfortable, easy-to-grasp control knob makes it easy to pan the table, position the gantry, and perform procedures.

Imaging

  • Lower dose by design

    GE designs systems from the ground up with the tried and trusted GE imaging chain, optimized to provide the image clarity you need while helping you keep dose as low as possible. Our dose-reduction features empower you to easily optimize and personalize dose settings from the tableside, while maintaining clinical details you need to make well-informed decisions. But improving dose management takes a strategy –what we call the GE Blueprint. 3
    It includes low-dose imaging technologies for minimally invasive procedures, but also considers the people, culture and processes around them.

  • Automatic Exposure Control

    Intelligent AutoEx & automatically selects the X-ray parameters to achieve the optimal balance of IQ/dose based on clinical needs and users preferences.

Applications

  • InnovaSpin

    The offset C-arm permits fast-spin rotational angiography over a maximum range of 200° at variable speeds from 20° to 40°/sec (maximum speed of 30°/s from LAO to RAO) with flexible cranio/caudal oblique angulations. The enhanced InnovaSpinTM trajectories are not constrained to a single transverse plane and can be used at oblique angulations within physical constraints. 2

1. Modification of preferences by requesting it to your entity responsible for the servicing of your equipment
2. Option may not be available in all countries, nor all systems, check with your local representative.
3. Features included in Blueprint may differ based on platform. check with your local representative
4. Option sold separately. Includes 3DXR. Requires AW workstation and Volume Viewer.

JB02265UK
