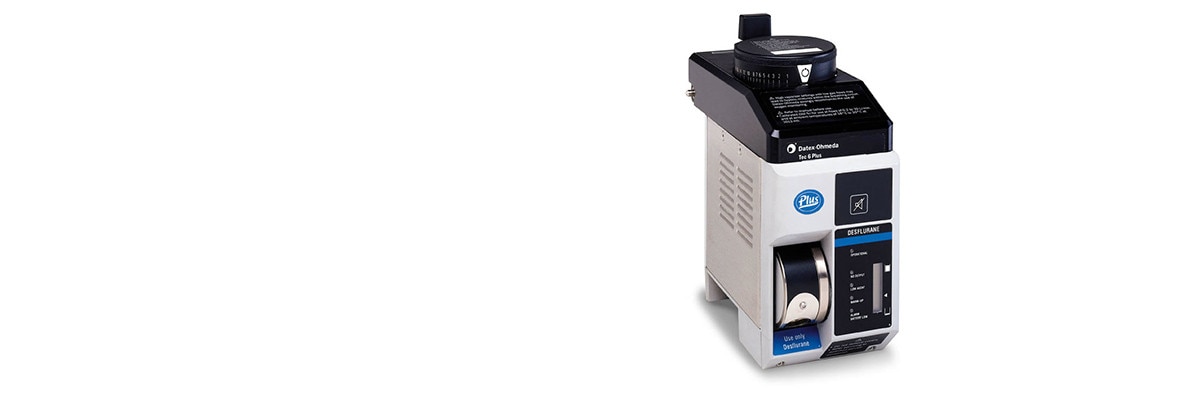

Tec 6 Plus
The Tec 6 Plus is an exceptional vaporizer designed specifically for the delivery of Desflurane anaesthetic agent.
The Tec 6 Plus is an electronic vaporizer which:
- Heats Desflurane to maintain constant temperature and vapour pressure for consistent output
- Indicates vaporizer status on an LED display - no output, low agent, warm-up, operational and alarm battery low
- Features several intrinsic vaporizer monitors and alarms that constantly monitor vaporizer status
The Tec 6 Plus manages alarm priorities with alarm audio sounds while conveying alarm importance in sound sequence, visual colour and flash rate. In addition, a distinctive audio tone will sound when the vaporizer can no longer deliver agent because AC power is disconnected. The Tec 6 Plus will even recognize if it has been tilted during use, and signals that output has been shut off. The Tec 6 Plus incorporates a self-test system which checks a range of conditions each time the unit is turned on.
The Tec 6 Plus also attaches to Datex-Ohmeda's* interlocking Selectatec* Manifold** allowing clinicians to change vaporizer arrangement from case-to-case or move vaporizers from suite-to suite without the need for tools.
Other Tec 6 Plus Vaporizer features include:
- An innovative non-spill system to limit movement of liquid agent if the vaporizer is momentarily tilted, protecting internal components and maintaining output within clinically acceptable limits
- An ergonomic dial release to allow either left or right, single-handed operation
Deliver with confidence.
To deliver an agent as sophisticated and controllable as Desflurane, you need a vaporizer to match: the Tec 6 Plus Vaporizer from GE Healthcare.
The Tec 6 Plus is an electronic vaporizer that heats Desflurane to maintain constant temperature and vapour pressure for consistent output. Tec 6 Plus incorporates an LED display indicating vaporizer status: no output, low agent, warm-up, operational, and alarm battery low.
The Tec 6 Plus:
- Features several intrinsic vaporizer monitoring functions and alarms that constantly monitor vaporizer status
- Incorporates a self-test system that checks a range of conditions each time the unit is turned on
- Includes an LED display with low agent level alarm
The Tec 6 Plus Offers Large Capacity, Easy Refilling
- A large, 425 mL sump capacity to accommodate nearly two full bottles of Desflurane, letting you use the vaporizer for extended periods before refilling
- The ability to refill while the vaporizer is in use
- A means to refill quickly with its Saf-T-Fill valve of the Desflurane bottle which is designed to fit only the complementary filling device of the Tec 6 Plus. This valve helps prevent accidental release of vapour into the OR and helps to ensure that only Desflurane is introduced into the Tec 6 Plus.
