Innova IGS 530

Innova™ IGS 530 is our image guided system with optimal panel size (30 x 30) for cardiovascular and interventional imaging.

As flexible as it is powerful

With its versatile 31 x 31 cm (12.2 in.) square flat-panel digital detector, the Innova IGS 530 is a multi-purpose floor-mounted system designed to support a variety of interventional vascular procedures, from neurological to peripheral exams. It also has the agility for steep angulations required for coronary angiography. The Innova IGS 530 is designed from the ground to provide the image clarity you need while helping you keep dose as low as possible. It includes features like Dose Personalization¹, which gives you the tools to choose from up to four automatic exposure preferences for your system². You can also modify any of these preferences in any clinical protocol to enable multi-procedure, multi-user customization and thus support well-informed decisions³. Powered with the new generation of GE's advanced interventional imaging software solutions, ASSIST, you can expand your clinical versatility and successfully plan, guide and assess increasingly sophisticated procedures with greater precision and dose efficiency.

System

Superb image quality with high Detective Quantum Efficiency (DQE)
The proprietary angiography flat-panel detector offers one of the industry’s highest ratings for Detective Quantum Efficiency (DQE), a parameter internationally acknowledged as an index of detector performance in contrast-and dose-limited imaging performed in clinical studies. High DQE enables better-quality images at the same dose, or the same quality image at a lower dose.
Optimal detector size adds clinical versatility
With a choice of 3 square panels (20.5 x 20.5 cm (8.1 in), 31 x31 cm square (12.2 in), or 41 x 41 cm (16.1 in)), we have the size you need to achieve all kinds of interventional procedures.
Offset C-arm
With its unique offset C-Arm, the Innova IGS 5 enables improved access to patient head in complex interventions and helps cover head to groin without moving the gantry.
Clear access to patients during interventions
Thanks to the exclusive design of the C-arm, you get unrestricted access to the patient’s head for anesthesia and nursing.
In addition, the C-arm design allows you to perform 3D rotational acquisitions of the spine and torso as well as patients’ head while intubated.
Simple, centralized, automated controls

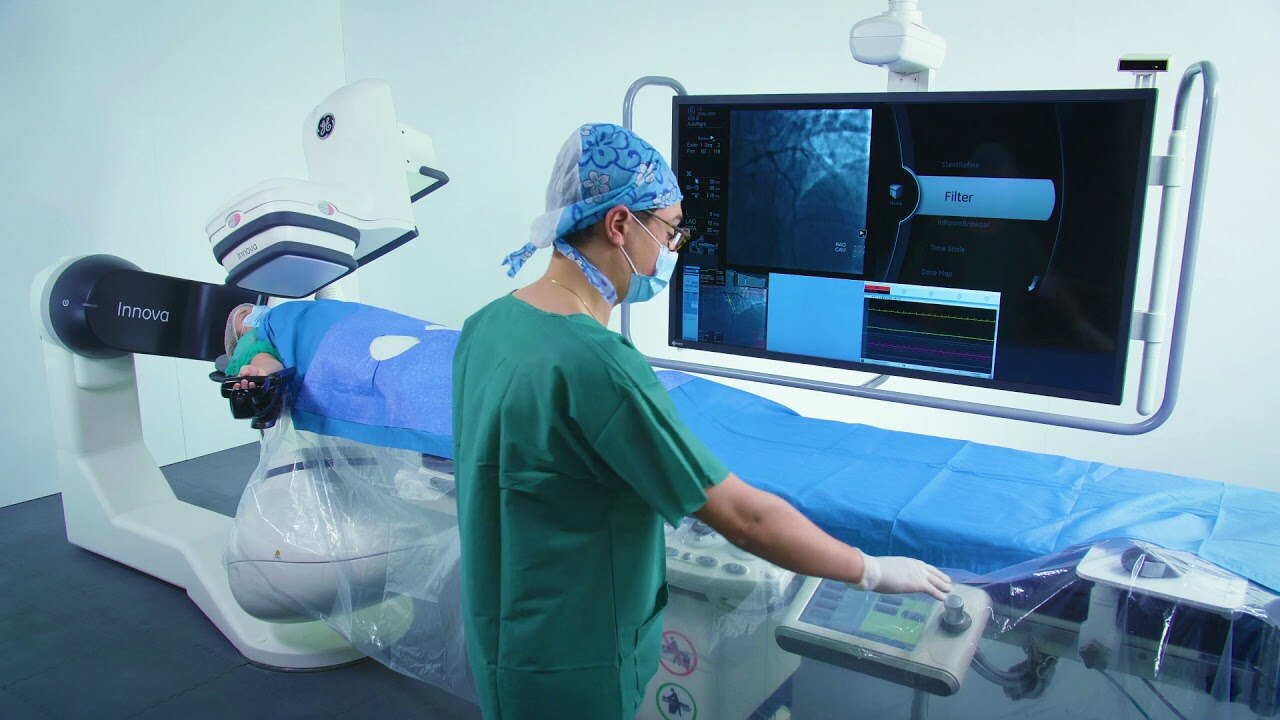

Control your system and images with integrated, intuitive tableside controls. With simple menus, the Central touchscreen lets you control most system functions, configure the system, modify imaging parameters, control your large display monitor³, and manipulate advanced applications –all at the tableside. The comfortable, easy-to-grasp control knob makes it easy to pan the table, position the gantry, and perform procedures.

Lower dose by design
GE designs systems from the ground up with the tried and trusted GE imaging chain, optimized to provide the image clarity you need while helping you keep dose as low as possible. Our dose-reduction features empower you to easily optimize and personalize dose settings from the tableside, while maintaining clinical details you need to make well-informed decisions. But improving dose management takes a strategy –what we call the GE Blueprint. It includes low-dose imaging technologies for minimally invasive procedures, but also considers the people, culture and processes around them.
InnovaSense
Advanced patient contouring technology that uses capacitive sensor to assess movement of the gantry and select the optimal position for the image receptor relative to the patient. ⁴
DoseMap
Display of the distribution of the estimated local cumulated dose all along the exam as well as the current projection of the beam. Alerts at configurable dose thresholds.¹

Imaging

Power up your clinical decision making

The interventional field is growing with ever-expanding capabilities and migration to less invasive, safer and more cost-efficient procedures. With the new generation of GE’s advanced interventional imaging software solutions, ASSIST, you can expand your clinical versatility and successfully plan, guide and assess increasingly sophisticated procedures with greater precision and dose efficiency.

Valve ASSIST 2⁶ for Transcatheter Aortic Valve Implantation

Valve ASSIST 24 for Transcatheter Aortic Valve Implantation: Plan

Plan

0-click aorta segmentation and valve definition makes accurate valve sizing accessible to anyone.

Valve ASSIST 24 for Transcatheter Aortic Valve Implantation: Guide

Guide

Leverage planning directly in the exam room with intuitive table side user interface. Calcification Enhancement improves the visualization of moving contrasted structures.

Valve ASSIST 24 for Transcatheter Aortic Valve Implantation: Assess

Assess

Assess potential regurgitation with exceptional contrast visualization. Real time benefits of Ultrasound imaging⁵ or angiography all in one place.

Valve ASSIST 2⁶ for Left Atrial Appendage Closure

Valve ASSIST 24 for Left Atrial Appendage Closure: Plan

Plan

Segment easily the atrium in a single click. Measure the appendage neck. Define and mark in advance trans-septal perforation.

Valve ASSIST 24 for Left Atrial Appendage Closure: Guide

Guide

Guide with confidence your trans-septal puncture and device deployment with pre-op CT overlay.

Valve ASSIST 24 for Left Atrial Appendage Closure: Assess

Assess

Ultrasound imaging⁵ can be integrated to our Large display monitor⁶ . All information converge in one place to help you make fast decision.

Related Products

1. Modification of preferences by requesting it to your entity responsible for the servicing of your equipment.
2. 3DCT HD is an option sold separately. Includes 3DXR. Requires AW workstation and Volume Viewer
3. Option may not be available in all countries, nor all systems, check with your local representative
4. Option. Available on IGS 520 and IGS 530 configurations
5. InnovaBreeze is optional on IGS 530 and IGS 540 configurations and itrequiresan AW Workstation. Advantage paste is included in InnovaBreeze.
6. MAR & Motion Freeze are optional features of 3DXR. Sold separately. The improvement related to Motion Freeze depends on the acquisition conditions, table position, patient, type of motion, anatomical location and clinical practice, it has been assessed visually on a physical phantom.
