Discovery IGS 740 for Interventional Radiology and Oncology

Free yourself from the rails.

Free yourself from the constraints of fixed ceiling-mounted systems' rails with the Discovery IGS™ 740 mobile angiography system. The untethered Discovery IGS 740 offers amazing siting and room design flexibility. Practice with exceptional comfort and control with Discovery's rail-free design and flexible wide bore C-arm positioning. And its ample detector covers large anatomies in both 2D and 3D.

With the Discovery IGS 740:

  • Put yourself at the center of your procedures with liberating rail-free design
  • Design your room with amazing flexibility
  • See large anatomies in one view with an exceptionally large detector
  • Perform fast and easy 3D acquisitions with a wide bore

Benefits

Put yourself at the center of your procedures.

With nothing in your way, you can image the anatomy of interest easily, position your monitors freely,
and access your patients completely from the left or right side on the Discovery IGS 740.

Discovery IGS 740 liberating rail-free design

Liberating rail-free design

The Discovery IGS 740's swiveling wheeled gantry moves freely on the floor, not on the ceiling, eliminating overhead rails. So you can place your monitors exactly where you need them for comfortable viewing without straining.

Discovery IGS 740 ample wide-bore C-arm

Large wide-bore C-arm

The Discovery IGS 740 has a wide bore C-arm. The combination of this wide bore and the large 41 x 41 cm detector enables to image patient in 3D at any point of the anatomy without collision even for large patients with BMI up to 40. Thanks to its wide bore, Discovery IGS 740 allows 3D imaging for at least 95% of the America's adult population and potentially more than 95% of the world's adult population.

Discovery IGS 740 arm positions

Dedicated arm imaging positions1

Perform procedures such as left arm fistulograms comfortably with the Discovery IGS 740's dedicated arm imaging positions.

See large anatomies in one view.

Cover large anatomies such as the liver or both legs simultaneously with fewer runs than smaller
detectors, for efficient use of contrast and dose.

Discovery IGS 740 an exceptionally large detector

An exceptionally large detector

With its broad 41 x 41 cm (16.1 in) digital detector, the Discovery IGS 740 system boasts one of the largest fields of view for interventional imaging. Moreover, the GE-proprietary digital detector delivers one of the industry's highest levels of DQE, the accepted measure of X-ray detector dose efficiency.

Discovery IGS 740 extended coverage in 2D

Extended coverage in 2D

With InnovaBreeze1*, take full advantage of the Discovery IGS 740's very large field-of-view and follow the contrast bolus in both legs in real time using variable panning speed control.

Discovery IGS 740 large organs in 3D

Large organs in 3D

Combine the wide-bore C-arm and the 41 x 41 cm (16.1 in) digital detector, and see large organs like the liver in 3D. Then use FlightPlan for Liver1 to help you identify tumor-feeding vessels in a few clicks and be selective during your liver embolization.

Design your room with amazing flexibility.

By eliminating the rails of ceiling-mounted systems, the Discovery IGS 740 frees up your ceiling
entirely for more flexibility in designing your room.

Discovery IGS 740 drawing the ideal room

Drawing the ideal room

With no rails on the ceiling blocking where to position ceiling-mounted ancillaries, the Discovery IGS 740 gives you flexibility to draw the location of your monitors, lights, and rad-shields where you need them to be. And with two customizable parking positions, the Discovery IGS 740 adapts to suit your room size and shape.

No reinforced ceiling structure needed

With the mobile Discovery IGS 740 system, there's no need for long and complex
infrastructure improvements to reinforce your room's ceiling structure.

Discovery IGS 740 precious space

Siting in precious space

Whether you're building a new room, re-purposing an existing room, or re-configuring a small room, the Discovery IGS 740 lets you use precious space efficiently. Fit the Discovery IGS 740 in rooms as small as just 35 square meters (377 square feet), for a wider choice of siting options in situations where space is at a premium.

ASSIST

Power up your clinical decision making

The interventional field is growing with ever-expanding capabilities and migration to less invasive, safer and more cost-efficient procedures. With the new generation of GE's advanced interventional imaging software solutions, ASSIST, you can expand your clinical versatility and successfully plan, guide and assess increasingly sophisticated procedures with greater precision and dose efficiency.

EVAR ASSIST 2

Endovascular aneurysm repairs can be delicate when dealing with complex anatomies. With EVAR ASSIST 28, 3D fusion imaging is very accessible.

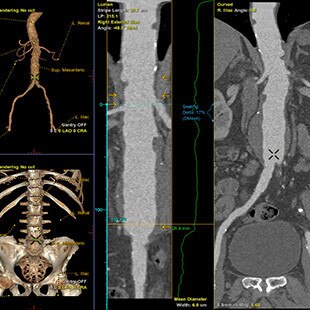

duct-categories-interventional-x-ray-igs-for-hybrid-or-discovery igs 730-evar-assist-3.jpg
Plan

Plan with a dedicated EVAR planning application to perform key anatomical measurements, size the endograft and save key information for fusion imaging during intervention.

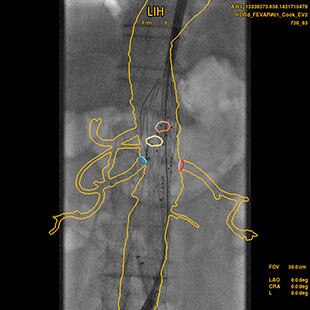

duct-categories-interventional-x-ray-igs-for-hybrid-or-discovery igs 730-evar-assist-2.jpg
Guide

Guide your devices by overlaying 3D datasets from CT, MR or CBCT on live fluoro images. Register the 3D model using the Bi-View registration.

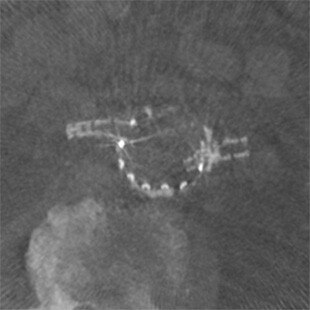

duct-categories-interventional-x-ray-igs-for-hybrid-or-discovery igs 730-evar-assist-1.jpg
Assess

Acquire a high definition cone-beam CT, Innova CT HD, to display the information in oblique views to assess device deployment and the presence of potential endoleaks.

Vessel ASSIST

Peripheral recanalization can be delicate especially for long occlusions. With Vessel ASSIST9, the 3D and centerline overlay helps to cross occlusions, position and deploy devices.

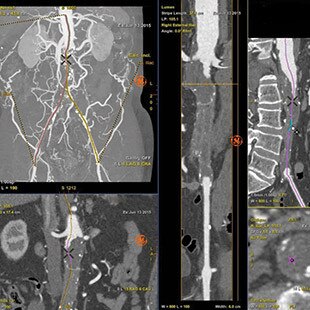

t-categories-interventional-x-ray-igs-for-hybrid-or-discovery igs 730-plan-evar-assist.jpg
Plan

Automatically extract the bone and vessel anatomies. Edit vessel centerlines and bridge them through occlusions.

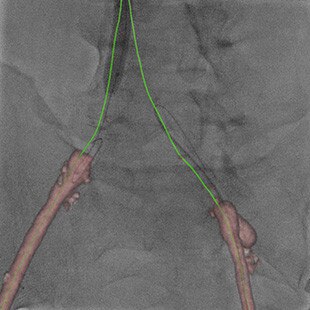

ct-categories-interventional-x-ray-igs-for-hybrid-or-discovery igs 730-vessel-assist-2.jpg
Guide

Import segmented anatomy, centerline and landmarks. Overlay them on live fluoroscopy whatever the angulation.

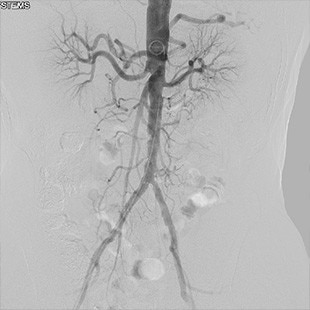

ct-categories-interventional-x-ray-igs-for-hybrid-or-discovery igs 730-vessel-assist-1.jpg
Assess

Use DSA images on a large field of view to image the entire anatomy of interest.

Valve ASSIST 2

Transcatheter Aortic Valve Replacement (TAVR) demands meticulous, detailed planning. Valve ASSIST 210 can help you plan and guide challenging procedures with confidence.

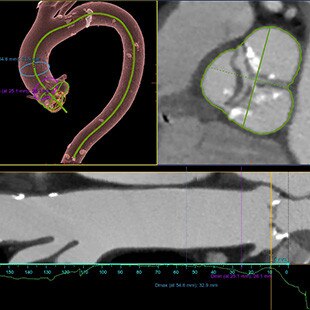

duct-categories-interventional-x-ray-igs-for-hybrid-or-discovery igs 730-tavi-assist-3.jpg
Plan

0-click aorta segmentation and auto-detection of the valve plane delivering easy and reproducible valve sizing for interventional cardiologists and cardiac surgeons.

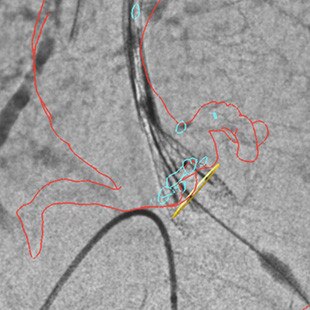

duct-categories-interventional-x-ray-igs-for-hybrid-or-discovery igs 730-tavi-assist-2.jpg
Guide

Guide devices with high-precision live 3D guidance and calcification visualization enhancement mode to assist valve positioning and deployment.

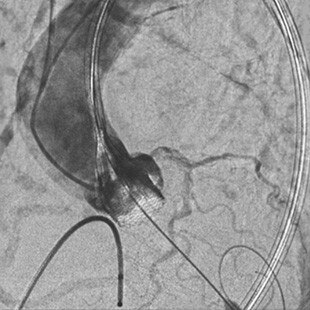

duct-categories-interventional-x-ray-igs-for-hybrid-or-discovery igs 730-tavi-assist-1.jpg
Assess

Visualize potential residual valve regurgitation using either angiography or ultrasound.

Needle ASSIST11

Performing minimally invasive spine procedures in the hybrid OR provides excellent access to the patient as well as high-end imaging capabilities to help find the right entry point and advance devices while avoiding critical structures.

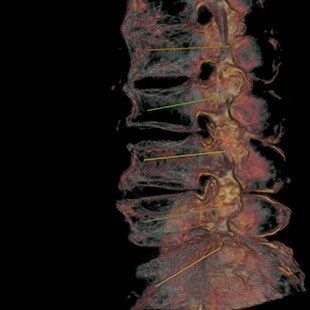

ct-categories-interventional-x-ray-igs-for-hybrid-or-discovery igs 730-needle-assist-3.jpg
Plan

Plan the procedure using outstanding 3D information and determine the optimal skin entry points and needle paths directly on oblique CBCT cross-sections.

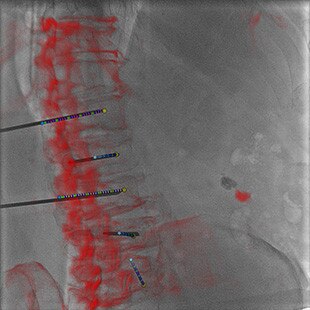

ct-categories-interventional-x-ray-igs-for-hybrid-or-discovery igs 730-needle-assist-2.jpg
Guide

You can guide your needle along the virtual trajectory that will follow C-arm angulations and table movements. A dedicated bone rendering helps visualize mis-registration and correct for even small patient motion from tableside.

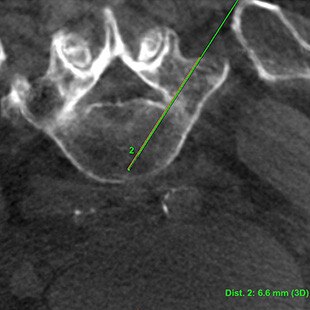

ct-categories-interventional-x-ray-igs-for-hybrid-or-discovery igs 730-needle-assist-1.jpg
Assess

The stereo 3D mode lets you visualize a reconstructed 3D needle on the CBCT oblique view from just two fluoroscopic images, letting you localize devices within the 3D anatomy without a CBCT acquisition.

Gallery

  • Discovery IGS 740

    Discovery IGS 740

  • Discovery IGS 740

    Discovery IGS 740

1. Option

2. For XA modality series, Integrated Registration currently supports only 3D X-Ray Angiography images (stored as CT Image Storage DICOM objects) acquired with GE equipment and reconstructed with the Innova 3DXR application.

* The Discovery IGS 740 has the widest bore (distance tube cover to detector cover) of the major players’ interventional angiography systems used for imaging in the field of interventional radiology & oncology procedures.
