Mac-Lab Hemodynamic Recording System

Streamlined workflow and collaborative documenting at point-of-care


Easily integrates into existing clinical workflows and IT environment


Improved clinical experience through communication across pathways and data


Secured data and privacy, no matter how many users or points of data entry


Streamlines documentation by incorporating DFR™ algorithm into your workflow

From admittance and diagnosis to treatment and billing, Mac-Lab™ helps optimize workflow, productivity, and throughput.

Integrated documentation, standardized point-of-care-information collection, and waveform data capabilities help streamline reporting. Designed for accessibility, ease-of-use, and collaboration, Mac-Lab ensures information is available when and where you need it—helping you focus on providing excellent patient care.

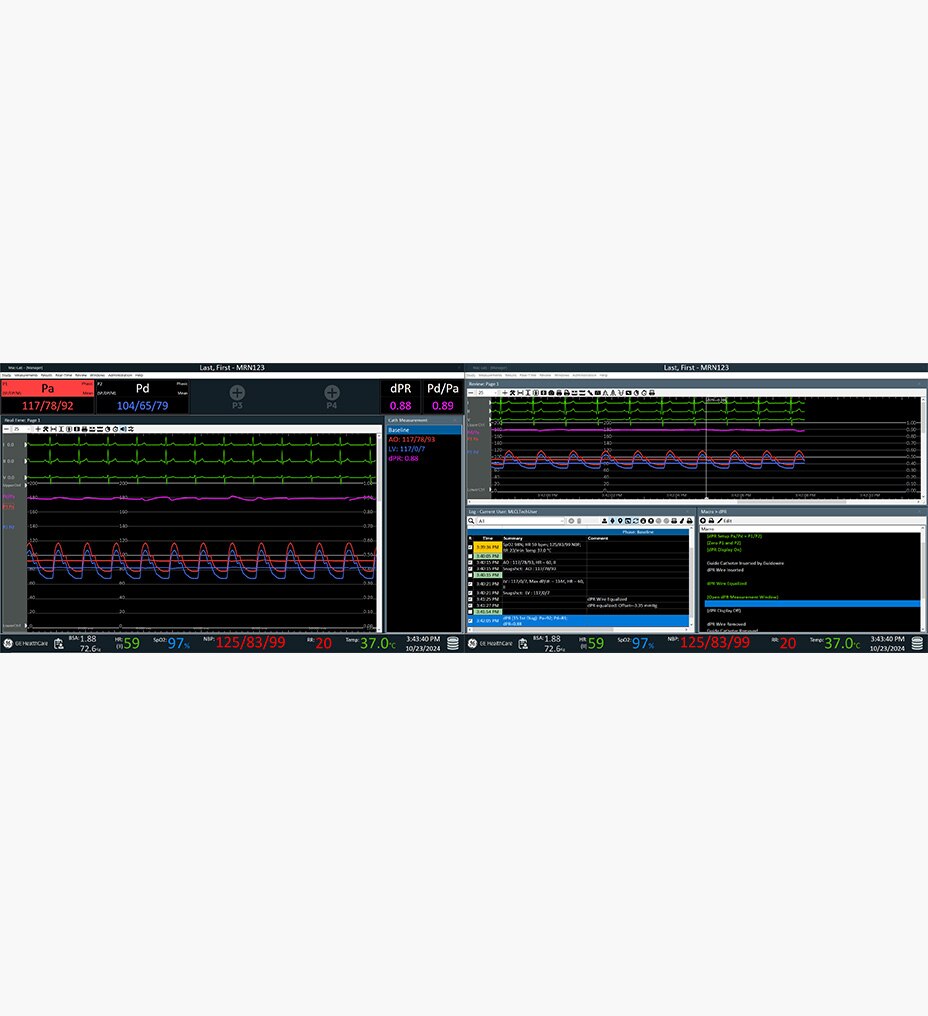

Elevating cath lab accuracy

Mac-Lab incorporates the DFR™ algorithm into your current workflow. Results are recorded in your Mac-Lab interface, easily documented in the procedure report, and exported to your EMR at the end of the procedure.

AltiX Features


ClearView enhances the user experience with a modern, fresh take on a familiar user interface. The introduction of a dark theme user interface helps reduce eye strain and provides visual clarity in darker work environments.2


DirectConnect provides an enhanced focus on data exchange and interoperability of devices—easily connecting to existing IT and clinical infrastructure.

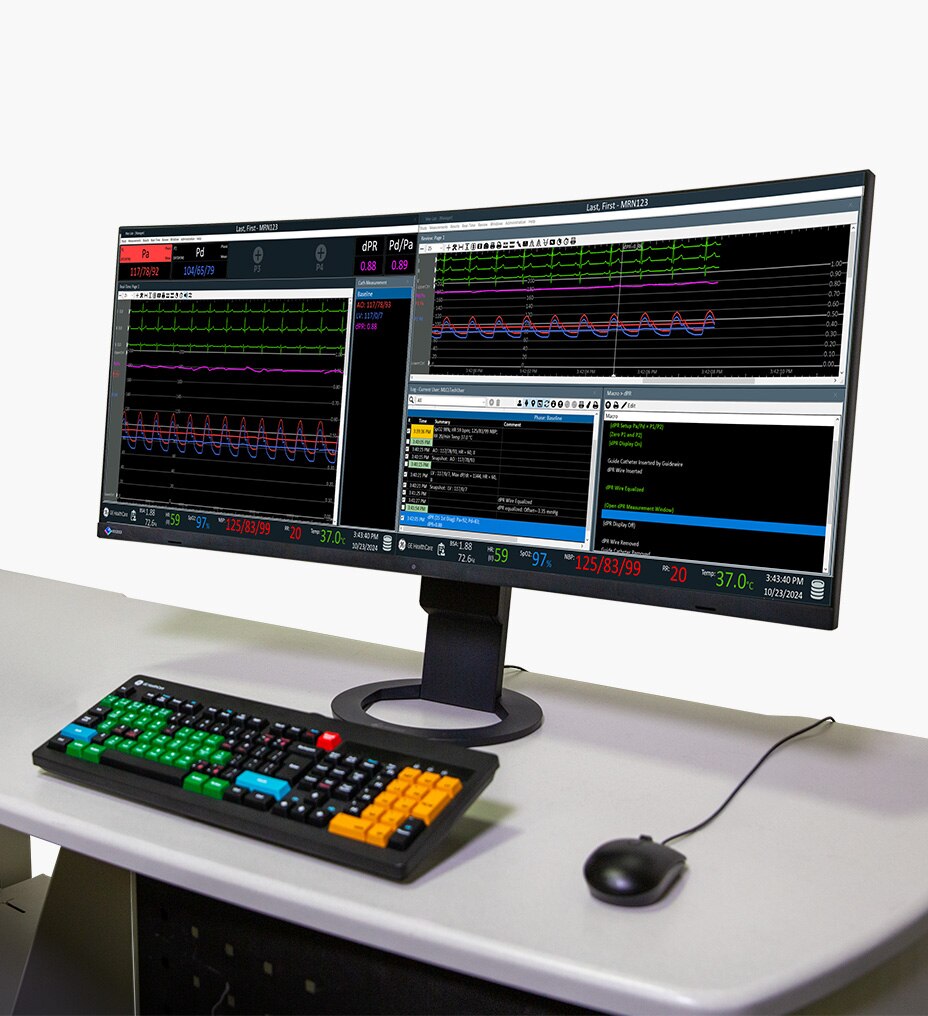

HD Video

The HD video package enhances the visual experience through improved monitor resolution with a 20% increase in pixels per display3 and 24-inch widescreen display monitors.


This optional selection of tools gives clinicians the information they need—when they need it—to help improve workflow and patient throughput.

Invasive Networking: INW Server

A software-only server solution for implementation in virtualized networking environments, the INW Server provides the link between acquisition systems and clients and allows different information technology systems and software applications to communicate and exchange information.


A suite of solutions that increase data flexibility and exchange

As EMR use continues to increase, AltiX BT22 responds with a focus on interoperability and solutions that fit simply into your existing infrastructure.

DirectConnect updates:

• Total dose documentation
• PDF generation and export
• Increased search schedule options
• HL7 export updates
• Workspace integration additions
• CARTO™ interface
• Image capture color



Additional Features of AltiX BT22

EMR Connectivity

New additional connectivity options thorough DirectConnect to reduce the need for intermediary systems

FFR Systems

The new integrated DFR algorithm may help simplify workflow—lessening the need to manually document results

Hospital info system

Enables modality selections to improve interoperability with third party worklist providers


AltiX provides a connection to CVIS—reducing the number of monitors, keyboards, and mice
  1. 1. Documentation Infographic_JB66989US_rev2
  2. 2. Dark mode supporting evidence JB79149XX
  3. 3. Product specification associated to pixel difference 1920x1200 versus 1600x1200 of previously used display monitors
  4. 4. Mac-Lab-CardioLab-AltiX_UsabilityWhite Paper_JB67833US
  5.     *Feature availability may require upgrade to AltiX BT22
  6.     *Not all features are available in all markets
