Clarity with Ease

The Voluson E8 provides access to advanced rendering technologies that bring out extraordinary clinical detail and workflow enhancements helping simplify volume rendering - offering an easy, yet essential problem-solving tool.

HDlive

On the Voluson E8, you have access to suite of HDlive technologies that bring unprecedented anatomical realism through advanced skin illuminating and shadowing techniques to help reveal a unique perspective for a higher level of diagnostic confidence.

• HDlive Silhouette - Dynamically apply transparency to rendered structures for a more comprehensive view of anatomy from a solid surface structure to developing internal anatomy
• HDlive Studio - Illuminate fetal anatomy with up to three independent light sources of variable intensity to focus on even the tiniest of structures
  • HDlive Flow - Clearly display vascular structures with greater dimension - from small vessels to the great arteries
  • HDlive Flow Silhouette - Visualize blood vessels from a surface or transparent view to provide greater insight into vascular anatomy and surrounding structures*

*Compared to conventional Color Doppler or HD-Flow.

Advanced Volume Contrast Imaging (VCI) with OmniView

On the Voluson E8, you have access to suite of HDlive technologies that bring unprecedented anatomical realism through advanced skin illuminating and shadowing techniques to help reveal a unique perspective for a higher level of diagnostic confidence.

• Advanced VCI - Adjusts slice thickness on 3D or 4D images to help enhance contrast resolution with use of render techniques such as bone and tissue renderings. Can be applied in the acquisition plane (VCI-A), static 3D volumes, or OmniView
• OmniVew - Obtain any plane from a 3D or 4D volume by simply drawing a line, curve, poly-line or trace through a structure. This valuable technology enables views of even irregularly shaped structures not attainable in 2D imaging

SonoRenderlive

Facilitate volume rendering with an automated placement of the render line for optimal surface rendering. SonoRenderlive continuously updates render line placement with fetal movement during 4D examinations.

Intuitive Design - Enriched Workflow

---

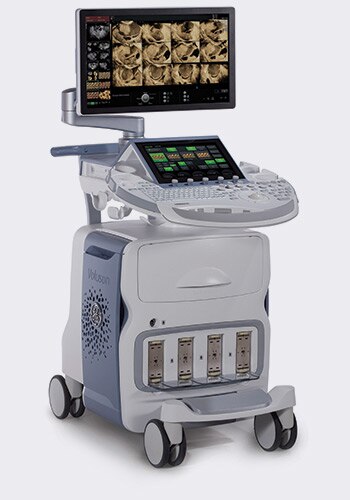

Modern ergonomic design

• 23" widescreen LED monitor with customizable format, large clipboard, and standard/XL image formatting
• 2.1" Touch Panel with multi-touch functionality
• Quick and easy 1-button control panel up/down function for optimal positioning

Simplified workflow

• Electronic TGC and efficient menu navigation with swipe technology
• Easy one-touch button workflow - Commonly-used scanning modes are right at your fingertips on the main screen of the touch panel
• Bar Code scanner for efficient entry of patient information
• ViewPoint synchronization for seamless data sharing and reporting
• 4 Active probe ports with port illumination

Fast, secure data management

• Secure User Management - unique user IDs for system access and tracking documentation
• Integrated Software Digital Video Recorder (DVR), including USB recording
• Directly export 3D print files in multiple formats
• Archive, collaborate and share images with 3G or cloud- based connectivity

Gain Efficiency With Automation

Every minute counts - with Voluson's easy-to-use automation and enhanced protocol tools - you can simplify the patient exam process diminishing wait times and boosting patient satisfaction.

• Scan Assistant - Flexible, customizable exam protocol tool that helps increase exam consistency and productivity while documenting for quality assurance purposes. Helps guide you through an exam more efficiently aiding in annotation, measuring, and reporting, transferring data to an image management system or PACS based system on your order sequence and output requirements.

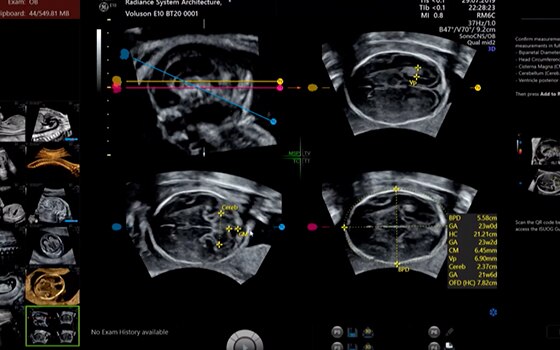

• SonoBiometry - Performs semi-automated biometry measurements (BPD, HC, AC, FL and HL) to help reduce keystrokes
• SonoNT (Sonography-based Nuchal Translucency) and SonoIT (Sonography-based Intracranial Translucency) - Voluson technologies that help provide semi-automatic, standardized measurements of the nuchal and intracranial translucencies in the 1st trimester. Both tools can integrate easily into your workflow. SonoNT helps avoid the inter- and intra-observer variability that comes with manual measurements, and helps provide you with the reproducibility you demand
• SonoVCAD ^TM heart (Sonography-based Volume Computer Aided Display heart) - By standardizing image orientation of the fetal heart, SonoVCADheart helps provide recommended views from a single heart volume or STIC acquisition
• SonoAVC ^TM (Sonography-based Automated Volume Count) - Innovative tool helps provide visualization and measurement of hypoechoic structures within anatomy such as ovarian follicles, fetal brain or sonohysterograms

Plug Into High Probe Performance

The Voluson E8 offers a suite of probe technologies including access to specialized high frequency probes. With the power of the Radiance System architecture, the system delivers exceptional image quality and clarity for your routine and most complex cases. The Voluson E8 is compatible with many existing Voluson Expert Series probes, thereby extending your financial investment.

Connect & Share - Securely

In your increasingly digital world, the Voluson E8 presents unique offerings to digitally connect, via image archiving systems, referring physicians and patients while maintaining the privacy and security you need.

• Maintain patient privacy with user management and login credentialing. The system cannot be accessed without proper login credentials and records changes to data edits, deletions, etc. with user tracing.
• Accurately transfer patient information to the Voluson E8 using a barcode scanner
• Enhance communication with referring physicians and patients by direct export of images and reports via Tricefy*, USB, LAN or 3G connectivity*

* Not available in all countries. Please contact your GE Sales Representative for more information.

Watch a video.

Listen to physicians speak about the benefits that Trice may provide.

With ViewPoint, our powerful patient reporting and archiving solution, you can further simplify your ultrasound workflow though efficient digital connectivity giving you freedom and flexibility to optimize the archiving of images, volumes and structured reports. Share patient information with colleagues securely to get the answers the patients seek.

• Manage patient appointments with an intuitive clinical scheduler
• Transfer patient information and image/ measurement data with seamless Voluson/ViewPoint synchronization
• Compare, review, post-process, and archive images and clips
• Create, modify and share high-quality reports
• Interface with enterprise-wide systems, such as EMR and PACS for data
