THE EXCELLENCE YOU DEMAND THE STANDARDS YOU SET
Your women’s health practice is where complex cases are the rule, not the exception. Where patients demand your expertise, and trust you for answers. With the Voluson™ E10 you can deliver truly exceptional care – confidently and efficiently – every time – keeping you at the forefront of women’s healthcare. The Voluson E10 encompasses the most advanced imaging capabilities combined with efficiency and security features to help you to provide confident patient answers, faster.
LEADING THE WAY – SETTING THE STANDARDS Unrivaled imaging for your most complex cases

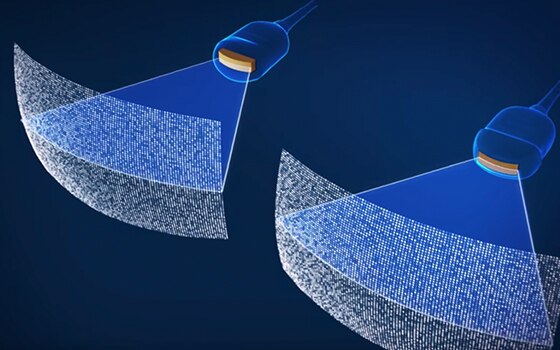

- Display extraordinary image detail with Voluson's Radiance System Architecture, its sophisticated beam formation and powerful processing gives you:*
4X ultrasound pathways for spectacular 2D and 3D/4D images with increased penetration and clarity
10X data transfer rate for higher resolution and very fast frame rates
4X processing power for advanced applications and efficient workflow
- 16X faster volume rates, flexible imaging formats (Bi-Plane), and brilliant resolution provided by the latest electronic 4D probe technology, eM6C**
- XDClear™ single-crystal transducer technology takes high resolution imaging to the next level
- Unprecedented depth and clarity via a suite of HDlive™ technologies revealing unique anatomical perspectives and amazing detail
- Achieve a new standard of color Doppler with Radiantflow - Delivering easy, fast visualization of even the tiniest of vessels
THE TRUST PATIENTS NEED. THE FOCUS YOU DESERVE. Tools that empower your very best care
- Experience intuitive volume navigation with Voluson xTouch while maximizing comfort and workflow through a modern ergonomic design including large high definition monitor
- Decrease complexity and increase exam consistency with Voluson's easy-to-use Sono-automation technologies and accomplish more each day
- Apply HDRes for elevated tissue differentiation, border definition and fine resolution
- Balance daily schedules while increasing patient satisfaction with Scan Assistant – the flexible, and customizable exam protocol tool
- Connect and store encrypted images with colleagues and patients with the help of ViewPoint™ and Tricefy™ inside
- Explore 3D Printing for rapid clinical prototyping, research, and parent bonding
- Protect sensitive data with advanced security features including Whitelisting and HD encryption
LIKE FAMILY – WE'RE HERE FOR YOU Always empowering you to do more
- Join VolusonClub – only ultrasound community dedicated to the education and collaboration of women's health providers
- Count on responsive service and support from dedicated staff and programs that truly meet your training, equipment maintenance, transducer protection, and flexible financing
* Compared to Voluson Expert Series BT13.
** Comparison performed using VE10 and eM6C probe BT18 and VE10 and mechanical RAB6 probe BT18.
As you guide the way to higher standards, employ the eM6c technology - the world's first commercially available curved matric electronic 4D probe designed specifically for women's health. This revolutionary probe opens new possibilities for exceptional care with ultra-fast volume rates, flexible imaging formats, and excellent resolution in routine women's health exams to complex fetal echocardiography.
The eM6c probe works with Voluson's Radiance System Architecture to extract the maximum amount of data rapidly to achieve volume rates up to 16X higher than those with mechanical probe technology.*

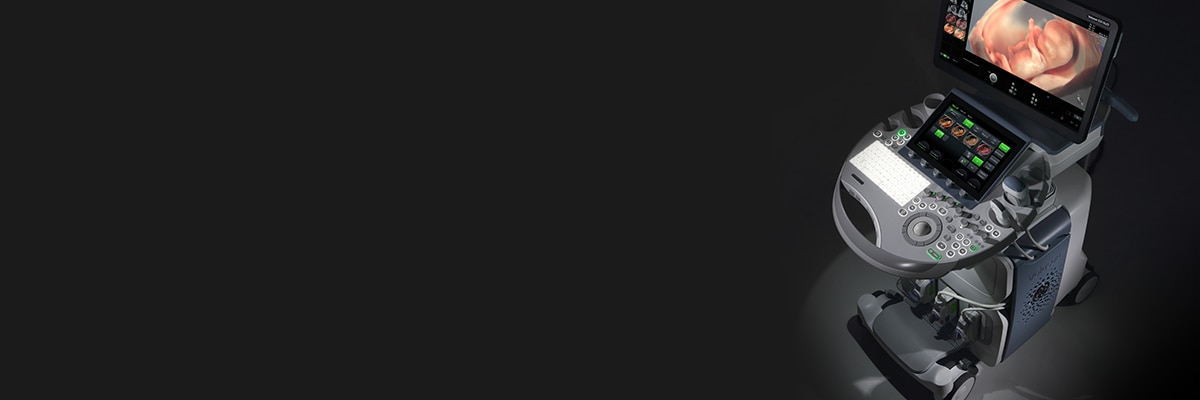

Together, the eM6c and the Voluson™E10 set a new standard in imaging performance to help obtain answers you and your patients demand.
MORE DETAIL, MORE CLARITY IN LESS TIME
The eM6C probe offers unique rendering tools to help achieve more clinical information, faster.
Bi-plane imaging - Provides simultaneous display of high resolution, high frame rate images in two perpendicular planes. Technology may be used in 2D and color Doppler modes.
eSTIC (electronic Spatio-Temporal Image Correlation) - Enhances fetal cardiac exams with up to 75% reduction in acquisition time over traditional STIC and delivers improved resolution in the B and C planes.***
VCI-A (Volume Contrast Imaging) - Delivers excellent contrast resolution through thick slice volume of grey scale and color Doppler images. The ultra-fast frame rate allows VCI-A to be used in standard mode for fetal brain, extremities, and heart exams.
Real-Time 4D - Ultra-fast volume rates for real-time display of motion allowing for excellent visibility of anatomical structures and functionality - e4D technology provides up to a 62% reduction in 3D acquisition time.
e4D SnapShot - Optimizes exam time with one button access from real-time 4D to acquire high resolution 3D volume or eSTIC data sets. SnapShot function can reduce keystrokes more than 80% when moving from real-time 4D to eSTIC or 3D rendering.**
* Comparison performed using VE10 and eM6C probe BT18 and VE10 and mechanical RAB6 probe BT18
** Comparison performed using GE's eM6C probe and GE's RAB6-D probe.
*** Compared to conventional mechanical probe technology with STIC
Having more information can help enrich clinician-patient communication and facilitate a more complete understanding of exam results. With Voluson's™ suite of HDlive™ technologies, reveal a unique clinical perspective of fetal and female anatomy that brings unprecedented anatomical realism to surface, vascular, and internal structures.
Powered by Voluson's Radiance System Architecture, HDlive utilizes a combination of advanced skin illuminating and shadowing techniques to expose possible hidden details for a deeper understanding of relational anatomy and developing structures.
ILLUMINATING THE FINE DETAILS
While conventional ultrasound rendering uses a fixed light source reflecting light off the skin surface, HDlive delivers customizable virtual light sources. Select light target area, direction, and intensity to highlight depth perception and internal structures.
HDlive Silhouette - Dynamically apply transparency to rendered structures for a more thorough view of anatomy from a solid surface structure to developing internal anatomy.
HDlive Studio - Illuminate fluid and anatomy with up to three independent light sources of variable intensity to focus on even the tiniest of structures.
HDlive Flow - Clearly display vascular structures and orientation with greater dimension and illumination.
HDlive Flow Silhouette - Visualize blood vessels and fetal heart flow to provide greater insight transparently through vascular anatomy.
Congenital Heart Defects are one of the most common and difficult fetal anomalies to detect. Identifying fetal cardiac abnormalities earlier means you can intervene sooner, plan for delivery and potentially improve outcomes. With Voluson™ ultrasound systems, we aim to help you improve patient care with innovative technologies that allow you to focus on early prevention rather than late diagnosis. GE Healthcare's dedication, coupled with collaboration with fetal echo experts, has led to the development of progressive tools to help distinguish the tiniest structures with stunning clarity and to help simplify assessment of the fetal heart. The Voluson ultrasound systems can help you to improve confident patient answers, faster.
GUIDE THE WAY TO HIGHER STANDARDS
Cutting-edge tools to help find answers to challenging exams
UNIQUE TOOLS - CONFIDENT ASSESSMENT
Effortless, fast visualization of even the tiniest of vessels with a new standard of color Doppler - Radiantflow
Newly enhanced volume automation SonoVCAD™ heart (Sonography-based Volume Computer Aided Display heart) - to help standardize orientation of the fetal heart by providing recommended views obtained from a single volume or STIC acquisition.
Apply HDRes for elevated tissue differentiation, border definition and fine resolution
16X faster volume rates, flexible imaging formats, and brilliant resolution provided by the latest electronic 4D probe technology, eM6C. Probe technology offers unique tools to help with comprehensive fetal echo exams.*
eSTIC (electronic Spatio-Temporal Image Correlation) - Enhances fetal cardiac exams with up to 75% reduction in acquisition time over traditional STIC and delivers improved resolution in the B and C planes**
Bi-plane imaging - Provides simultaneous display of high resolution, high frame rate images in two perpendicular planes. Technology may be used in 2D and color Doppler modes
e4D SnapShot - Optimizes exam time with one button access from real-time 4D to acquire an eSTIC data set. SnapShot function can reduce keystrokes more than 80% when moving from real-time 4D to eSTIC***
Detect fetal abnormalities earlier in the first trimester with the high resolution 4D endovaginal probe (RIC6-12D)
M5Sc sector probe - Phased array probe for fetal and maternal cardiac imaging, extraordinary imaging even in difficult scanning conditions
COMPLEX CASES - NEW STANDARDS
Conduct a more comprehensive assessment of fetal cardiac function with Tissue Velocity Imaging - PW Tissue Doppler for Wall Motion Analysis
Quantify size and growth of cardiac dimensions and assess growth and charting development in fetal hearts with a congenital abnormality with Z-Scores
Apply Anatomic M-Mode or Dual M-Mode to the fetal heart to help assess rhythms and perform cardiac - either while scanning real-time or from a stored clip
3D Printing for rapid clinical prototyping and research with full mesh exports directly from the Voluson ultrasound system -export files can be generated from color, inversion, and glass body data sets
* Comparison performed using VE10 and eM6C probe BT18 and VE10 and mechanical RAB6 probe BT18.
** Comparison performed using GE's eM6C probe and GE's RAB6-D probe.
*** Compared to conventional mechanical probe technology with STIC.
Patient demands and time pressures are high. To succeed, your practice requires exceptional and efficient imaging - helping you to provide answers for your patients while managing your busy practice. With easy-to-use automation tools you can streamline your workflow, decrease exam complexity while increasing consistency. Voluson's Sono-Automation technologies help improve reproducibility of obstetric and gynaecologic exams while documenting for quality assurance purposes, helping you accomplish more each day while empowering you to deliver the best care to your patients.
GAIN CONSISTENCY WITH AUTOMATION
Easy to use tools to help reduce keystrokes and enhance patient care
SonoVCAD™heart (Sonography-based Volume Computer Aided Display heart) Enhanced volume automation to help standardize orientation of the fetal heart by providing recommended views obtained from a single volume or STIC acquisition
Performs semi-automated biometry measurements to help reduce keystrokes
Simplifies volume rendering by automating render-line placement in 3D and 4D imaging
SonoNT™/SonoIT (Sonography-based Nuchal /Intracranial Translucency)
Semi-automatic, standardized measurements of nuchal and intracranial translucency
SonoAVC™general (Sonography-based Automated Volume Count general)
Innovative tool to help provide visualization and measurement of hypoechoic structures within anatomy such as the fetal brain, kidneys and gynecological sonohystograms
SonoAVCfollicle Sonography-based Automated Volume Count follicle)
Automatically calculates the number, dimensions, and volume of hypoechoic structures in a volume sweep to help monitor patient follicles faster
SonoAVCantral (Sonography-based Automated Volume Count)
Easily assess ovarian reserve by automatically counting antral follicles in the ovary and categorize into user defined size groups
Confidently measure fetal head progression, while automatically documenting the labor procedure
3D printing technology is creating new advancements in the healthcare industry and is proving to be an asset in developing new medical applications and in enhancing patient satisfaction. With Voluson™ ultrasound systems, you can explore the possibilities of 3D printing for research, clinical prototyping, and even parent bonding. As the first and only women's health ultrasound systems to offer full mesh exports directly from the system, you are ready to move your practice and patient care in new and innovative directions.
CUTTING-EDGE PERFORMANCE. NEXT LEVEL PATIENT CARE.
Explore 3D printing for clinical prototyping, research, and parent bonding
3D printing technology has made great strides in recent years and is used for everything from additive manufacturing to custom art design. The healthcare industry is also harnessing the 3D printing potential to improve patient lives through prospects including prosthetics and surgical planning. Voluson, the leader in 3D/4D imaging, is keeping you at the forefront of this emerging technology by providing the ability export files directly from the system to instantly 3D print projected and full data sets. Downloading directly helps save time and reduces complexity versus using external post processing software.
Projected mesh data sets produce surface renderings without overhanging elements. Therefore, only leading edge surfaces will be generated. This simplified 3D print type is useful in facial, limb, and general anatomical structures.
Full mesh data sets produce overhanging, free standing structures in addition to the surface views. Demonstrating spaces and cavities, this 3D print type is useful when analyzing fetal anomalies such as cleft lip and spina bifida.
In addition, full mesh export files can be generated from color, inversion, and glass body data sets - clearly demonstrating fetal blood flow as well as vessel and surrounding structure relationships.
Mesh exported files can be used with 3D modeling software to further analyze and process for research purposes. Because these mesh files are exported directly from the Voluson ultrasound system to USB or 4D view without necessary manipulation, you can import the files right into a 3D printer for completion.
Voluson ultrasound systems support several file formats including:
- .stl - (STereo Lithographie)
- .obj - (Alias Wavefront OBJect file format)
- .ply - (Standard PoLYgon File Format)
- .3mf - (3D Manufacturing Format)
- .xyz - (Point Cloud File Format)
The most common are .stl and .obj. The advantage of .obj is that it contains the ultrasound skin rendering information for unique results ( e.g. Sepia, HDlive etc.). However, surface rendering data can only be realized in projected mesh.
Voluson systems also offer an export of the volumetric data in DICOM® format (Enhanced Ultrasound Storage; Supplement 43). Useful for research studies, this data can be imported by 3rd party post processing software for conversion to a surface model and refinement for a specific 3D printer.
* Note: With 3D printing rapidly evolving, we refrain from recommending printers.
Financing & Service
Solutions to help your practice
You can count on responsive service and support from GE Healthcare, including a variety of financing and leasing options through GE Healthcare Financial Services.
Learn more about Financing & Service.
Community & Education: Join the Voluson™Club
Join the VolusonClub.
Connect to more than 26,000 Voluson users through VolusonClub, our global networking site.
Learn, network, share - and get the most out of your ultrasound investment.
Learn more at www.VolusonClub.net
